TB132cc, Cam, Big Valve, & VM26 Carb kit – CRF110 2013-2018

TB132cc, Cam, Big Valve, & VM26 Carb kit – CRF110 2013-2018

TBparts kit combines the 132cc top end, camshaft, Big valve kit, and VM26 carb kit for the best price possible!

This is one of the best ways to get the most out of your CRF110. First you get the 132cc big bore kit. This is as large as you can go without having to bore cases. This allows you to make the most power for the least amount. Next we recommend having a professional use our install instructions to install the big valve kit. Once this is done you can flow more air to the larger bore making more power. The stock head comes with roller rockers. Combine them with our performance roller rocker cam, now you can open the larger valves up to breath even more. This will set you above most of the competition out there by basically making your stock head a race head. This kit includes the VM26 carburetor to fuel the new race ready engine! Start with the stock 22.5 pilot jet and drop the main jet down from 190 to #175 or 180 and you will have a great starting point to ride.

Key features:

• Fits 2013 thru 2018 Honda CRF110 (not for the later fuel injected models)
• Largest bore (55mm) you can go without boring the cases
• Proven high quality Mikuni VM26 carburetor
• New reverse intake manifold
• Better cylinder head flow
• Rev higher and faster with lighter valves
• Oversized and higher quality valves over stock valves
• More power and fun at an affordable price
• Performance camshaft with new bearings – Our cam is designed for mini MX

Kit includes:

• 55mm Aluminum Cylinder with Steel Sleeve
• 55mm Lightweight Piston & Rings with 13mm Wrist Pin

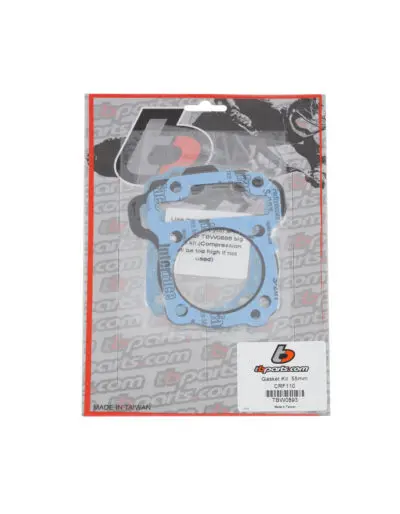

• 55mm Top End Gasket Set
• Genuine Mikuni VM26mm Performance Carb (Not a cheap ebay fake Mikuni)
• Jet kit with 3 extra different sized jets
• Reverse Intake Manifold Kit with Mounting Hardware
• Foam Air Filter
• Throttle Cable
• Stainless Steel EV8 lightweight Big Valve Kit with valve springs,  retainers, seals, and cotters.
• Performance camshaft with new bearings – Our cam is designed for mini MX

Note 1: The stock CRF110 throttle is restrictive and will need to be replaced with a generic Honda type throttle. If you dont have one, we have 3 throttles in this section that will work (TBW1051 generic Honda type or our TBW0425 /TBW1123 billet throttles).

Note 2: The valve kit should be installed by a professional mechanic or shop that offers valve job service as the valve seats must be cut to accept the larger valve head diameters and valves sunk deeper to allow for overlap clearances. The kit includes a document that includes protrusion and installs heights specs.

Note 3: When using TBparts 132cc piston TBW0892 you must use the supplied thick 1.5mm base gasket UNLESS TBW0888 Big Valve Kit is installed. It helps reduce compression to avoid engine knock.

TBparts.com is the only distributor of our products and the parts are shipped directly from the manufacturing facility to us. When a product is purchased from us, it has not gone through several middlemen and thus, the savings goes to the consumer. Additionally, to keep prices down, we use basic packaging and installation instructions are not included.  The end result is affordable and high quality performance parts that will add some power and excitement to your bike!
