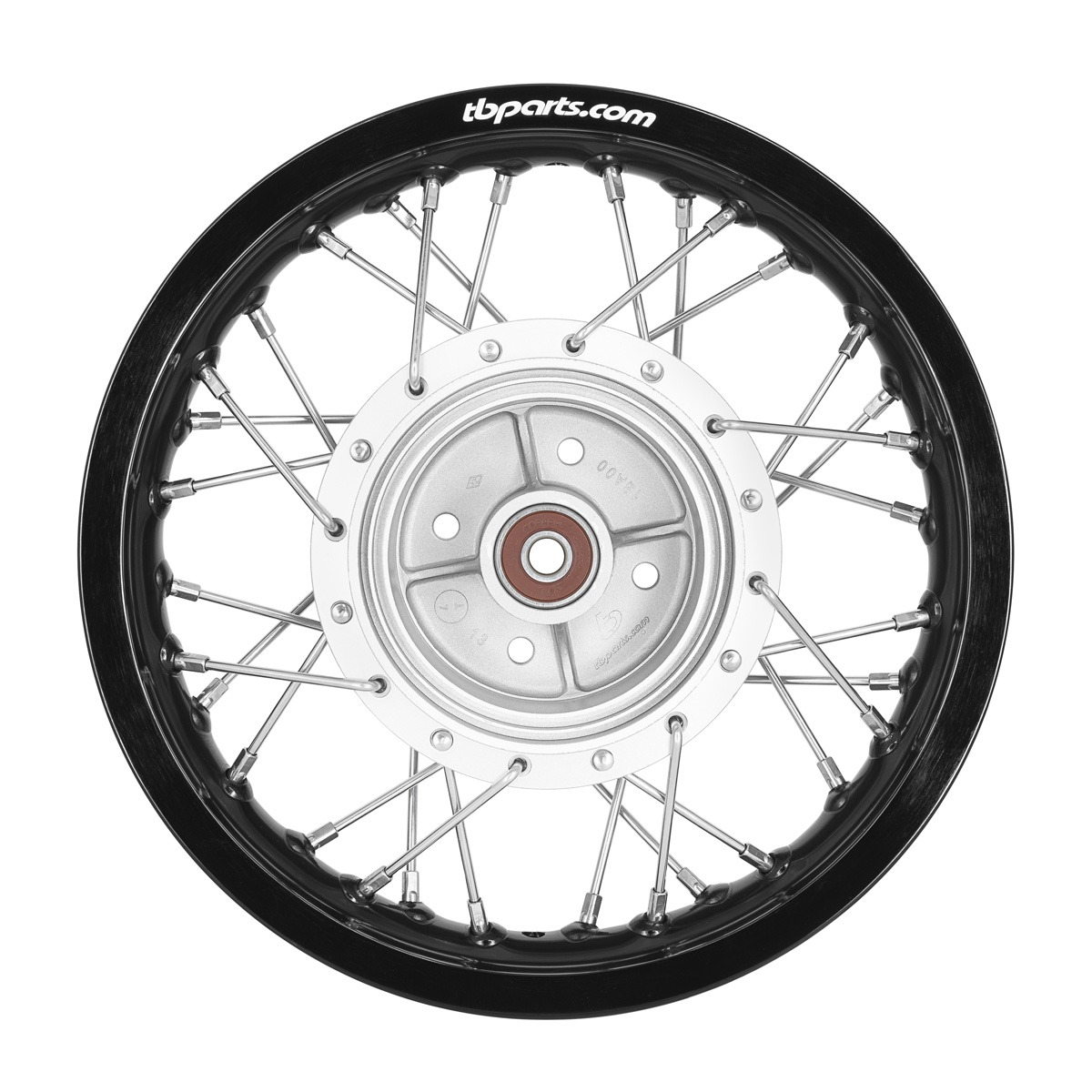

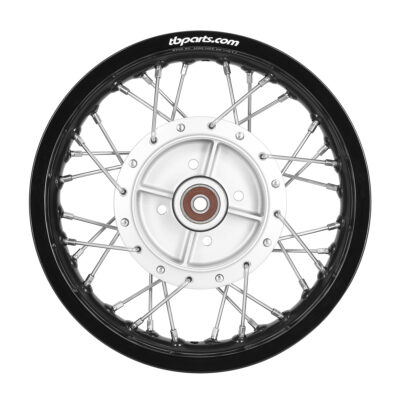

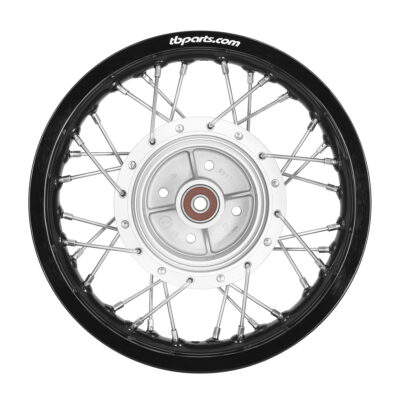

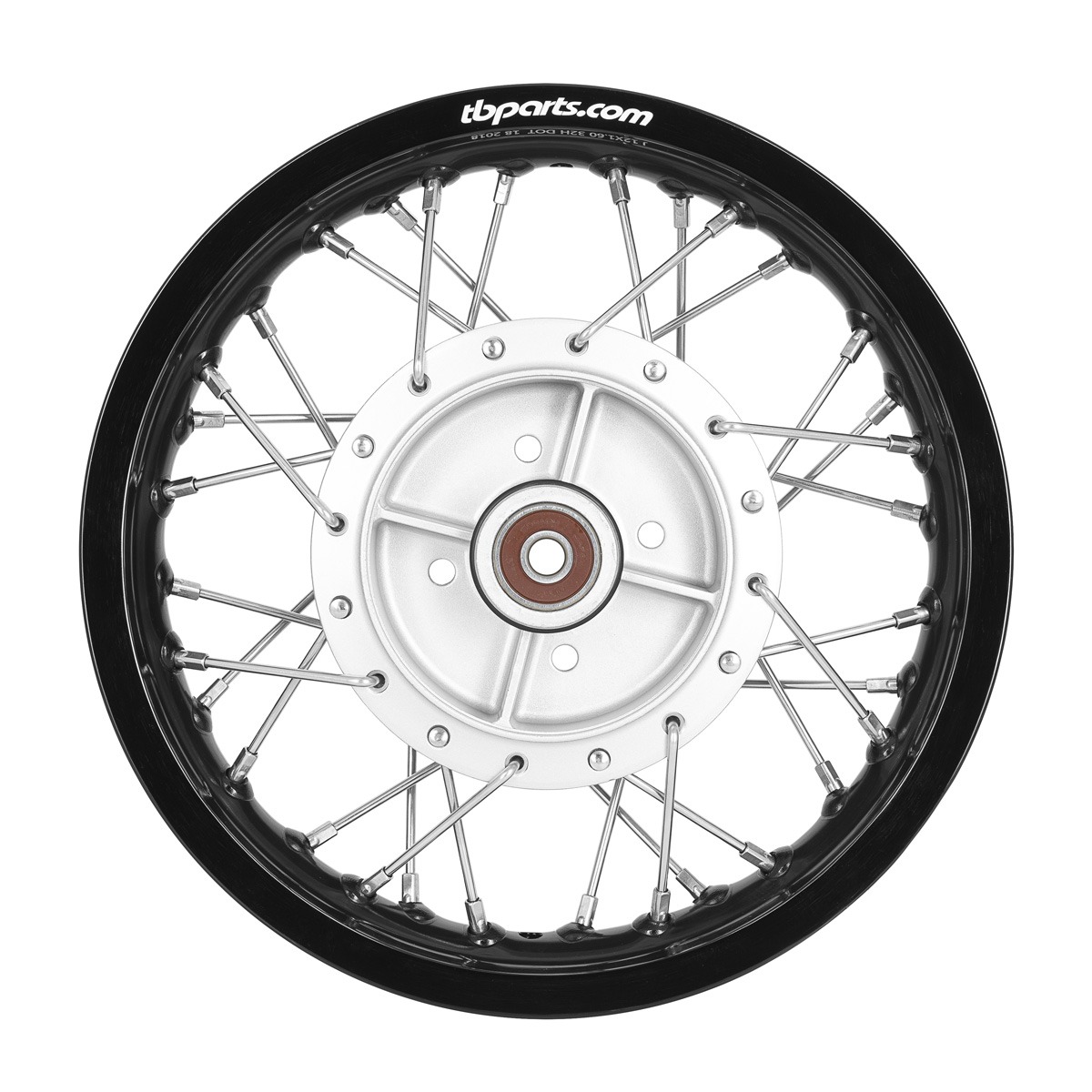

TB Wheel Assembly, Rear – All TTR110

TB Wheel Assembly, Rear – All TTR110

Here at TBparts we wanted to bring a new high quality and affordable option to the market. So, our wheels come ready to run from bearings to the rim! Starting out, we had the factory install high quality NTN bearings with the proper spacer behind/between them. Next, is our OEM style “bolt in place” cast aluminum hub painted in silver to match the OEM brake panel (our TB logo is also cast in).

For added strength, we used thicker and stiffer/harder Stainless Steel spokes that are weather resistant compared to the basic steel OEM spokes. Wrapping up the complete wheels are the aircraft grade 7050 aluminum rims in satin black with the TBparts.com logo! The black rims look great once installed!

These are lighter, stronger, and more weather resistant than the factory steel rims. Not to mention, ours come laced saving you a ton of time and hassle!

Features:

• Drilled for rim lock
• Factory installed NTN wheel bearings
• OEM style “bolt on” hub with TB logo
• Oversized Stainless steel Spokes
• 7050 aluminum rim in satin black with TBparts logo
• Laced and ready to bolt on!

Size

• Rear 12×1.6″

Important Notes –

1. We recommend re-torquing your axle nut after the first 15 min of ride time. OEM specs of 25ft-lbs for the front and 43ft-lbs for the rear.
2. After 1 hour of ride time the spokes should be checked to make sure they are tight. Keeping your spokes tight is a good way to ensure a long life out of the wheel. True your wheels for best results. Torque specs 55 INCH – LBS
3. The steel brake drum is painted to avoid rust for storage, it will wear in once used.

TBparts.com is the only distributor of our products and the parts are shipped directly from the manufacturing facility to us. When a product is purchased from us, it has not gone through several middlemen and thus, the savings goes to the consumer. Additionally, to keep prices down, we use basic packaging and installation instructions are not included.  The end result is affordable and high quality performance parts that will add some power and excitement to your bike!
