TB suspension kit #315 – CRF110

TB suspension kit #315 – CRF110

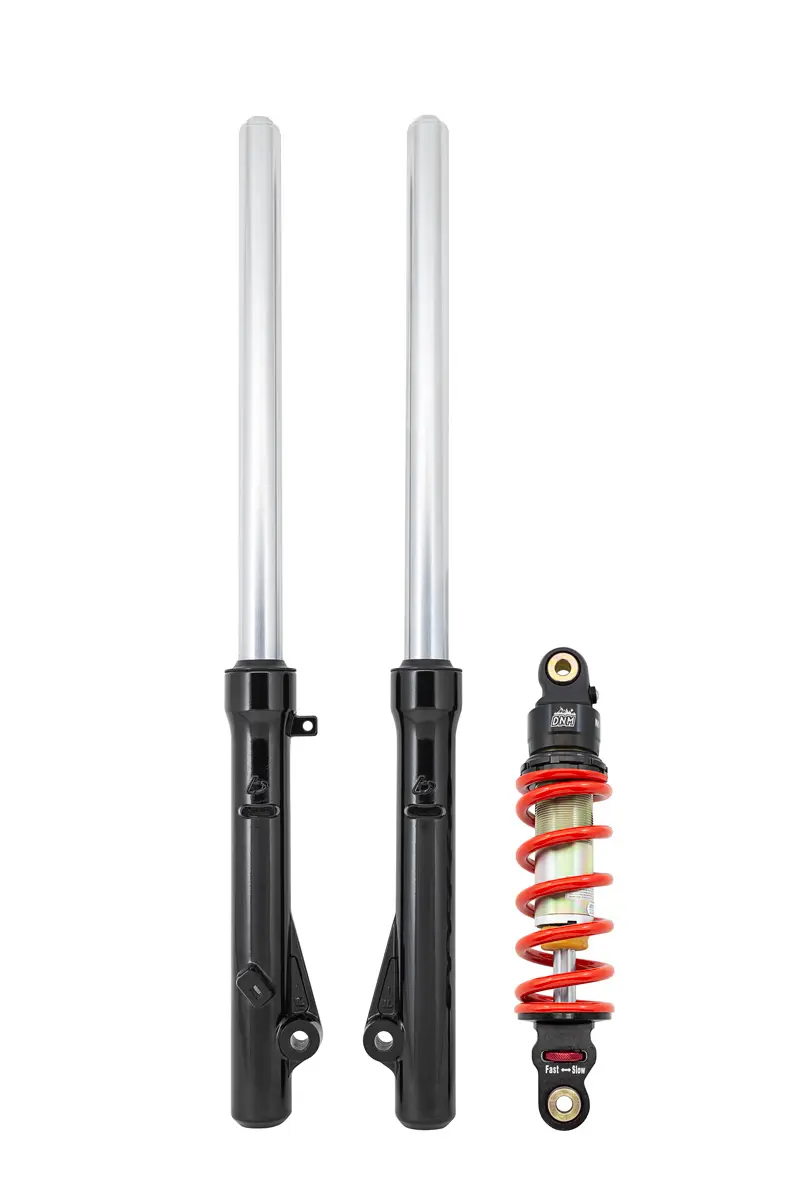

Our suspension package includes the following items paired together for an even better price:

TB Fork Assembly Set – All CRF110

TBparts Fork Assembly Set for the CRF110. Our replacement fork set is a bargain considering OEM replacements are over $660 for a set! They also feature a few key upgrades over the factory forks making them better suited for your MX mini! Starting out are the looks, ours come gloss black and have our TB logo cast into them. Next, adding to the adjustability and performance is the length. They are +40mm, over 1.5″ longer. The dampening rod has also increased in length so the travel can match at +40mm over 1.5″.

Inside the fork they feature HD springs weighted much better for adults who jump at their local Pitbike track. The dampening rods are also ported to match those HD springs so the dampening and rebound is not too fast and bouncy.

Key Features:

• Adult weigh fork springs – 115lbs when compressed 3″. These are about 2x as stiff as factory.
• Extended +40mm length and travel (Over 1.5″)
• Gloss black fork bottom with TB logo cast in
• HD springs better suited for adult riders
• Improved dampening rod for better dampening, rebound, and increased travel

DNM Rear Shock, 315LB – CRF110

Improve your ride and handling with these high quality shocks. DNM has been an integrated part of the suspension industry for more than 40 years. Their goal has always been to supply OEM and the aftermarket with high performance suspension technology at an affordable price.  This rear shock is from their MK-AR series and consists of the following features:

• Unlike other similar DNM shocks for the CRF110, these were made to our specification so you don’t have to grind/modify your frame for them to fit the 2019 and up models. Simply bolt on and go!
• Preload and Rebound Adjustments
• 315lb Spring rate great for adults over 140lbs
• Nitrogen Charged Oil Damping
• Hard chromed steel 14mm damper shaft
• High quality surface finish
• 290mm and is for all year models of the CRF110

Installations notes:

• Our fork set comes with 15wt fork oil, if desired you can drain and refill with 4.5-5oz of your choice of fork oil
• Replacement fork seals are the same as OEM
