Name: TB 212cc bore kit &amp; Stainless Valves - Daytona 190
SKU: TBW9502
Price: 399.99 USD
Availability: InStock

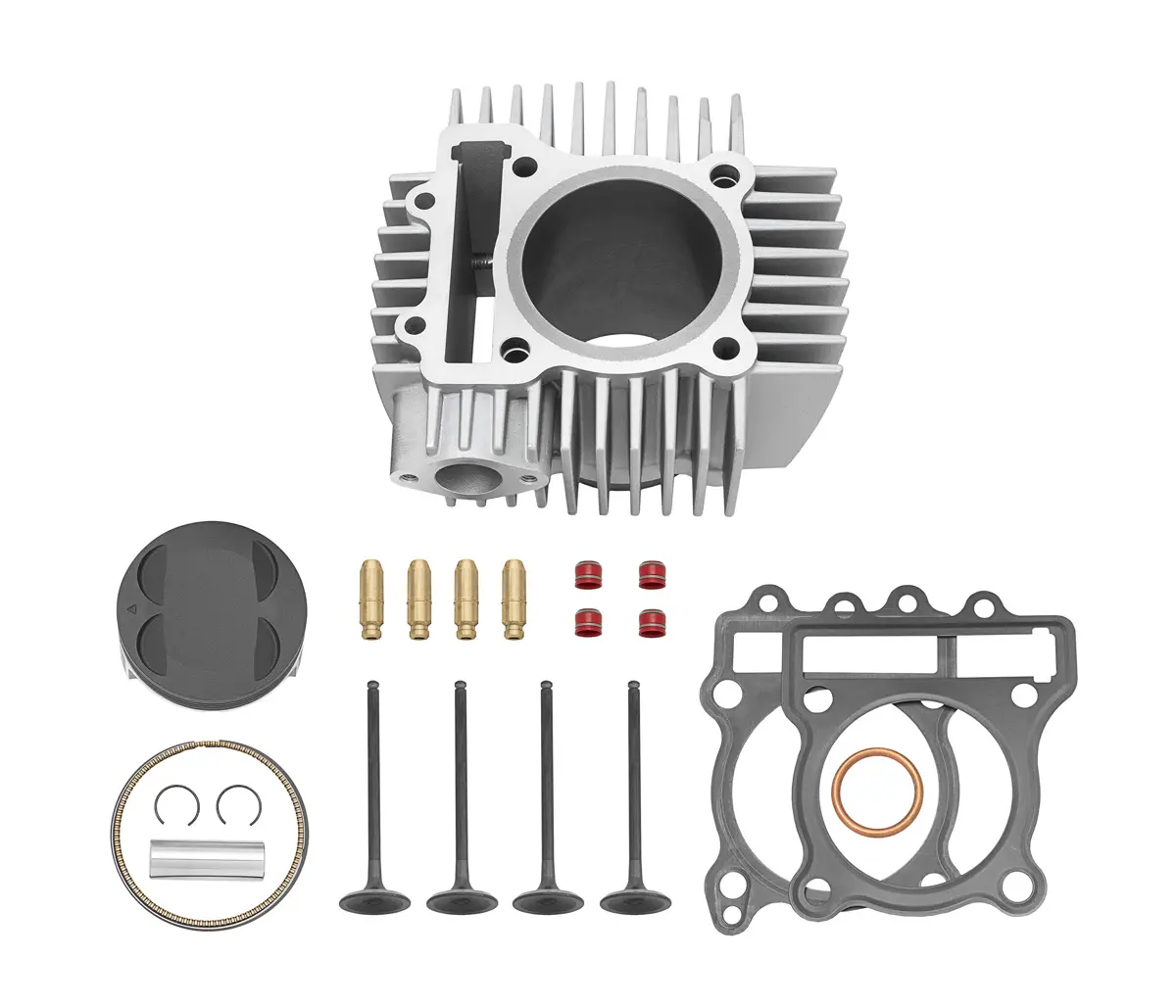

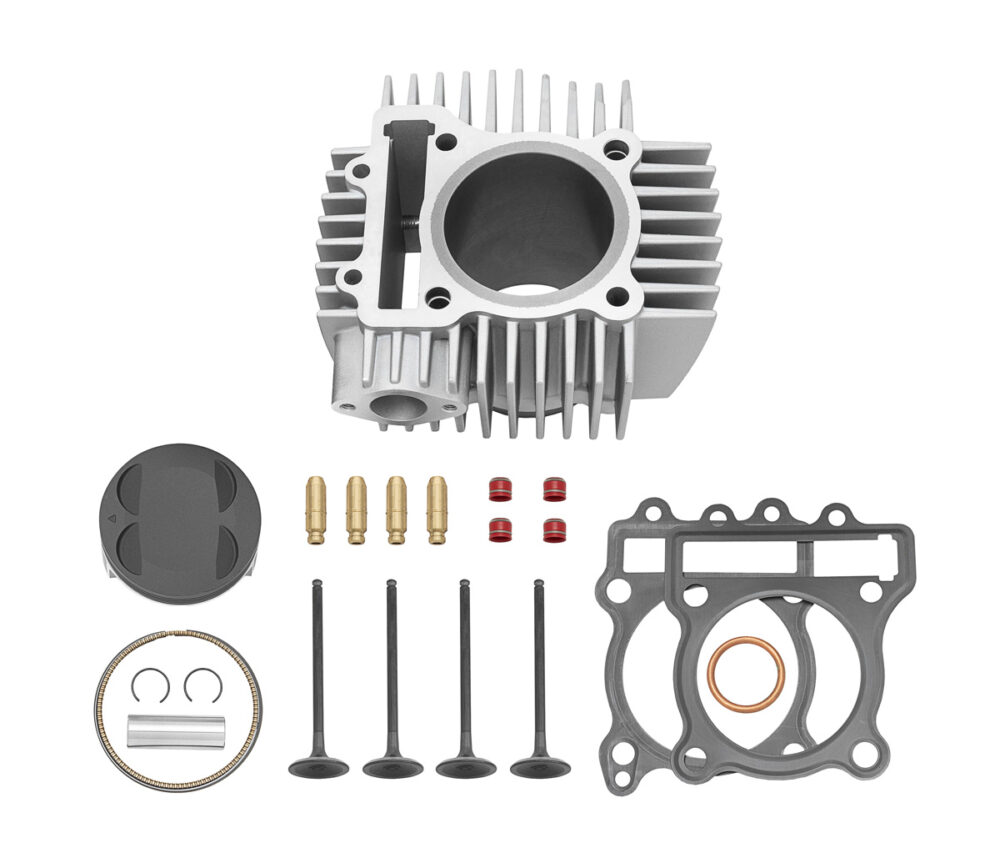

TB 212cc bore kit & Stainless Valves – Daytona 190

$399.99

TB 212cc bore kit & Stainless Valves – Daytona 190

TBparts 212cc big bore kit & stainless valves for the 4 valve Daytona 190.

TB 212cc Bore Kit – Daytona 4 Valve 190

Our piston is made to the highest standards possible – to be the best option available. This kit does not require boring of the case – simply bolt on, tune and go!! This is an ideal option if you’re looking to add some power to your 4 valve Daytona 190.

Key features:

Forged, high compression 66mm piston, with rings, pin, & clips
Piston dome is hard Anodized for superior protection
Piston skirts are non stick coated for reduced friction
Our piston is pump 91+ octane gas friendly.
Aluminum cylinder with steel sleeve (55mm)
Head gasket kit with exhaust gasket!
More power and fun at an affordable price
Easy bolt-on kit
+4mm of bore or 22cc
Replacement parts in stock!

Note for installation- There is an arrow on the piston. This notes the exhaust flow and is on the exhaust valve relief side.

There are no installation instructions, but if you can replace your piston, you can install this kit. If you don’t have any experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike. We also have a link on our website in the INFO section under Honda where you can find additional info. The parts are installed in the same manner as the OEM parts.

TB Stainless Steel Valve Kit w/Oversized Intake valves – Daytona 190

This kit fixes week link in these engines with far superior quality parts. We have taken new out of the box engines apart to inspect the valve to valve guide guide clearances to find them at the limits again new out of the box. Once installed our kit ensures your valves will be in spec reducing the odds of engine failure while adding more power with oversized intake valves.

Features :

High Quality Made in the USA Kibblewhite Bronze Valve guides and Viton Red Valve seals
2 0.5mm oversized intake valves (25.5mm) and 2 Standard 21mm exhaust valves (maintains use of stock valve seats)
High quality EV8 (21-4N) Stainless steel valves made to spec for longer life!
Only for use with the Daytona 190 engine
Valve Protrusions/Install sheet included

Notes:

This kit should be installed by a professional mechanic or shop that offers valve job service as the valve seats must be cut to accept the larger valve head diameters and valves sunk deeper to allow for overlap clearances.
Installation sheet/directions included with kit
