TB 170cc Bore kit, Cam, & VM26 Kit – KLX140

TB 170cc Bore kit, Cam, & VM26 Kit – KLX140

TBparts 170cc big bore, cam, & VM26 carb kit. This will make your KLX140 a lot more fun to ride by adding some much needed power! Combine the 170cc kit with our performance cam to really wake that KLX140 up! Our cam opens the valves up faster and provides more lift to let even more air and fuel in for even more power! Great for playbike racing and idles low enough to use on the trails too! The genuine Mikuni VM26 has a proven track record of high performance, quality, and easy tuning. The VM26 is +6mm larger than the factory carb so the bike will pick up power everywhere. Paired with our new billet manifold for an “Air Box Delete” Setup. TBparts CNC billet aluminum intake manifold is hard anodized black with the TBparts logo for the ultimate finish. Port matched to the stock head and made for use with VM26 carbs. This manifold kit does not reuse the stock airbox/tube, must use supplied pod filter.

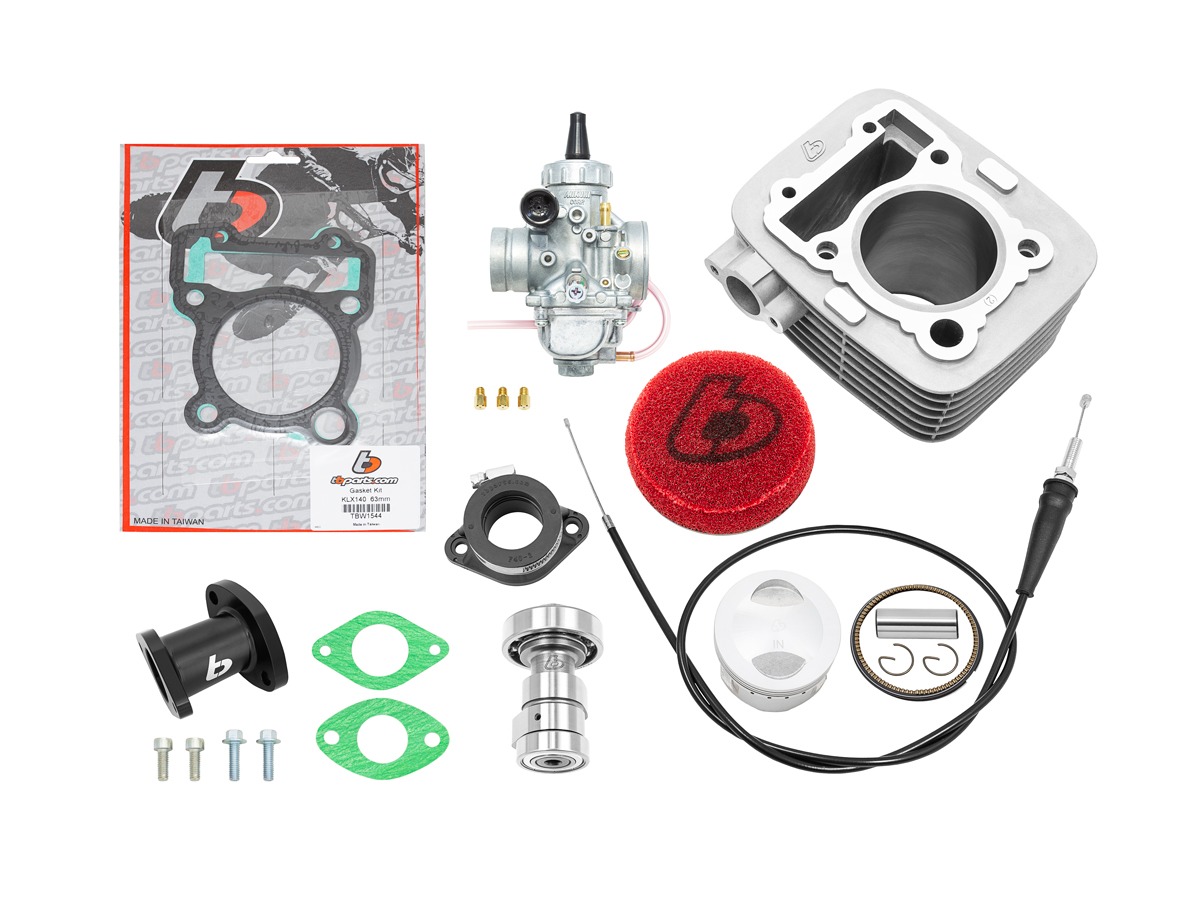

Key Features:

• Piston Kit w/ Wrist Pin, Ring Set, Cir-clips
• Safe with 91+ octane Pump Fuel
• TBparts 63mm aluminum cylinder with HD cast in steel sleeve
• 63mm Top End gasket kit
• Performance high lift cam, complete with new bearings
• Genuine Mikuni VM26mm Performance Carb (Not a cheap Chinese copy carb)
• TBparts CNC Billet Intake Kit port matched to the VM26 and stock cylinder head
• Extended Throttle Cable for use with the stock bars and throttle or tall bars.
• Not for use with stock air box – High Flow Race use!

Note: 2025+ KLX140s – require case boring to fit. Our cylinder skirt is 65.95mm 2025+ cases are only 65.4mm wide.

There are no installation instructions, but if you can replace your piston, you can install this kit. If you don’t have any experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike available from your local Kawasaki dealer. The parts are installed in the same manner as the OEM parts.

Jetting – Base tune – 22.5/190

Installation Notes-

• New Choke lever position is much harder to reach compared to OEM, New Fuel Line not included
• KLX140 camshaft bolts are reverse threaded, turn them right/clockwise to loosen/remove. Torque to 87 INCH-LBS & Use red thread lock
